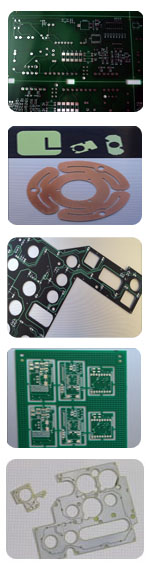

Sample Panels



Services..

Chiltern Circuits Ltd., established in 1981, offers the following services:

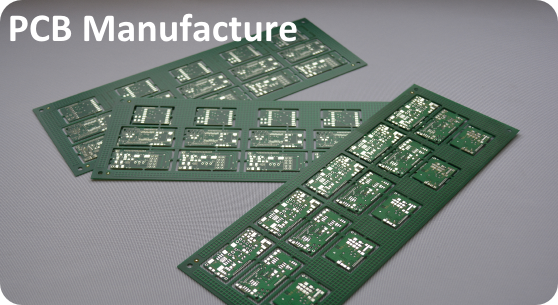

Production of single and double sided printed circuit boards (subcontract multilayer).

Prototype to production runs.


v     All materials. FR4, FR3, FR2 plus specials eg Black FR4.

v     Thicknesses from 0.2mm to 3.2mm as standard.

v     Solder masks and component ident in various colours.

v     CNC drilling and routing.

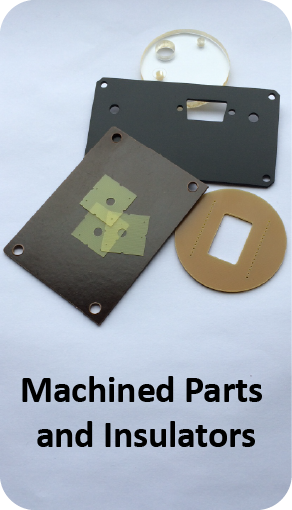

v     Insulating panels. Can be manufactured from all standard FR4 PCB materials, as well as paper laminates and Mylar to individual requirements.

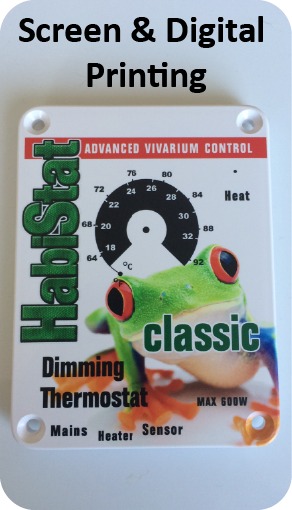

v      Screen-printing. eg front and rear panels and boxes. These can be metal, clear and coloured polycarbonate or  other plastics. The latter can be produced in-house using our drilling and routing processes.

v     Photo plotting. Standard PCB file format would be Gerber from a PCB design package. We are also able to work from other formats such as EPS and PDF. Contact us to discuss your requirements.

v     Lead free solder SN100C alloy as standard.

v     63/37 tin / lead finish is still available should it be required.

All of the above services are undertaken by friendly and efficient staff who have extensive knowledge and experience.

Please contact Steve Dear for a highly competitive quotation, further information or advice.

Chiltern Circuits Ltd., 51 Poppy Road, Princes Risborough, Buckinghamshire, HP279DB

Telephone: 01844 343437   Fax: 01844 347102   Email:chilterncircuits@btinternet.com



****** Now totally lead free using SN100C alloy ******.

Please contact Steve Dear for a highly competitive quotation, further information or advice.
